Product Description
This ankle brace is the first of its kind. Designed as an “apply and forget” type brace, it will fit any ankle shape. The great flexibility of the components stabilises the ankle more easily and with more precision. It can be reshaped many times, without losing its qualities, allowing adjustment according to morphological changes. Sold as individual braces, no left or right, if you require a pair you simply order 2 braces.
CHARACTERISTICS
- Direct molding on the limb
- Antibacterial fabric
- Radiolucent
- Submersible and auto-draining
- Remoldable without limits nor degradation
- 3.2 mm thickness that permits the normal dressing
- Compostable eco-friendly plastic
THREE SIMPLE STEPS
- Heat the brace in an oven or hot water pan, between 67 °C and 85 °C (152°F and 185°F), until it becomes soft and elastic. Dry Heat Method - Put the brace in either the Turtlebrace heating bag, a regular or convection oven, for 5 to 10 minutes. It can take longer, 20-30 minutes for some ovens. Keep checking until the brace passes malleability to the point of elasticity. Hot Water Method - Place the brace in a hot water heating pan for about 3 to 5 minutes.
- Once the brace has become soft and elastic, you can drape the brace on the body. Make sure that the temperature of the brace is not too hot for comfort or at risk of burning your client.
- Place your client in the desired position and wait for the brace to harden.
INDICATIONS
- Stable fractures, sprains, post-op immobilization, Achilles tendon tear, tendinitis, serial casting, spasticity control, ankle neuropathy.
- Do not heat the brace over 100°C (210°F), because the fabric or/and the zipper could burn or melt.

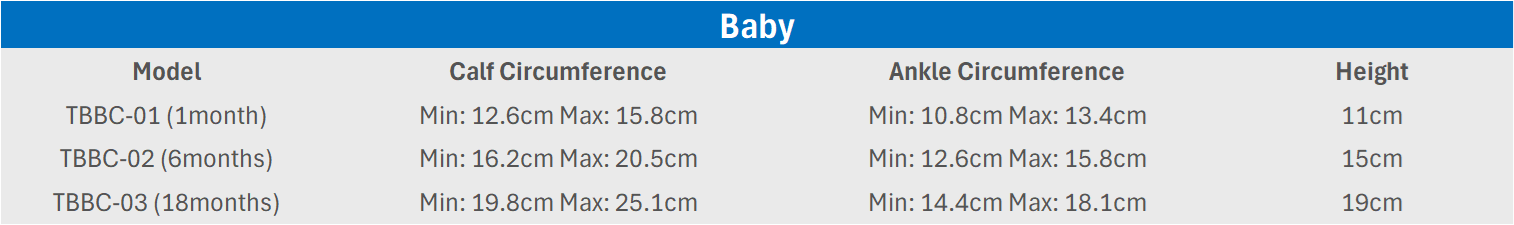

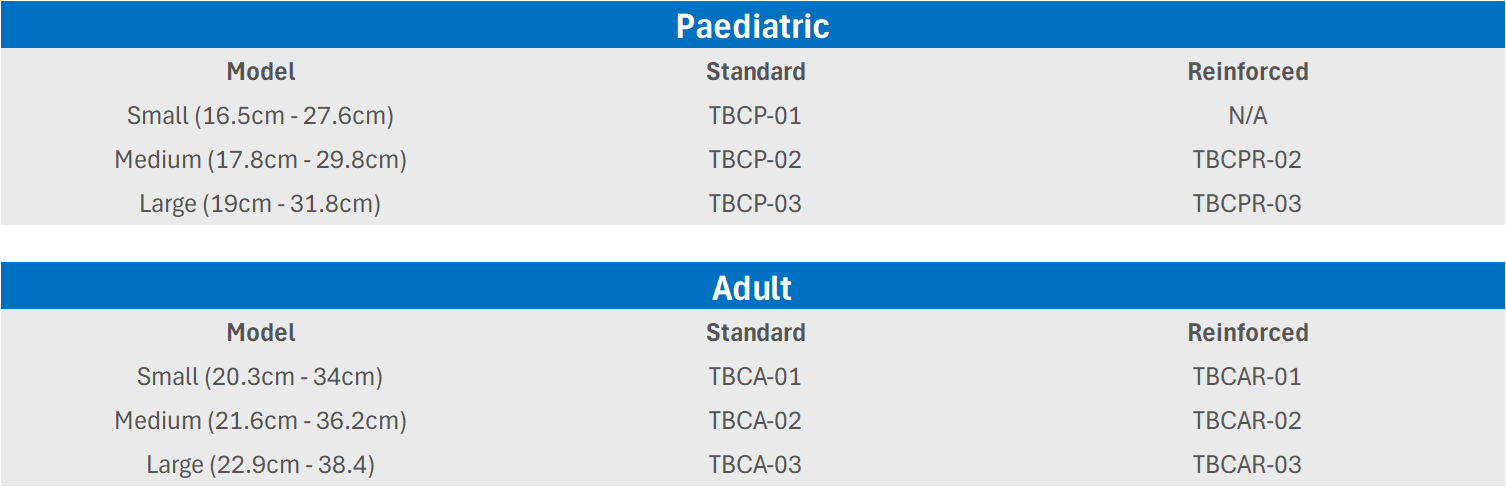

SIZING : Measure on the diagonal as per diagram below
There is much overlap between turtlebrace sizes due to the great versatility of the heated product. You will also want a foot length and shank height that are suitable.
Choose a size where the circumference sits right in the pocket of the range provided and then refer to these hard brace measures to ensure the lengths will suit.

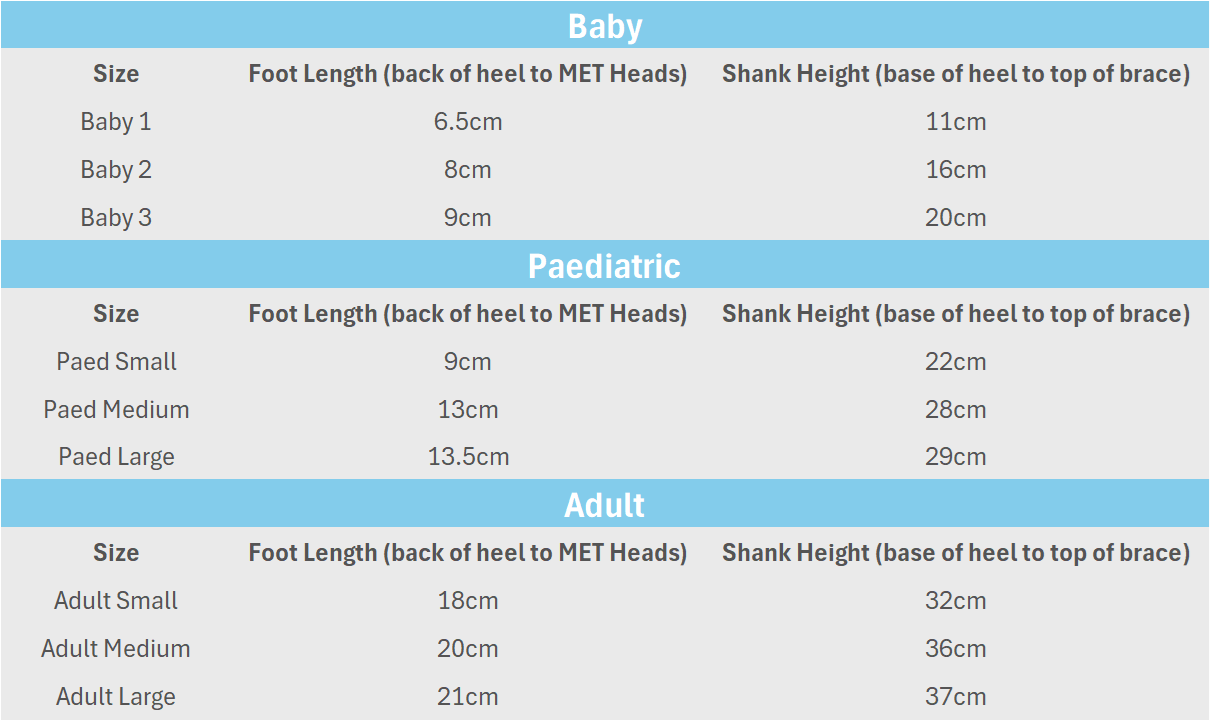

Here are the hard brace measurements knowing that there is significant stretch and flexibility when heated.
Size Foot Length (back of heel to MET Heads) Shank Height (base of heel top of brace)
Baby 1 6.5cm 11cm
Baby 2 8cm 16cm
Baby 3 9cm 20cm
Paed Small 9cm 22cm
Paed Medium 13cm 28cm
Paed Large 13.5cm 29cm
Adult Small 18cm 32cm
Adult Medium 20cm 36cm
Adult Large 21cm 37cm
